DuraMac EQ6820ZT6D Six-wheel Drive Bus

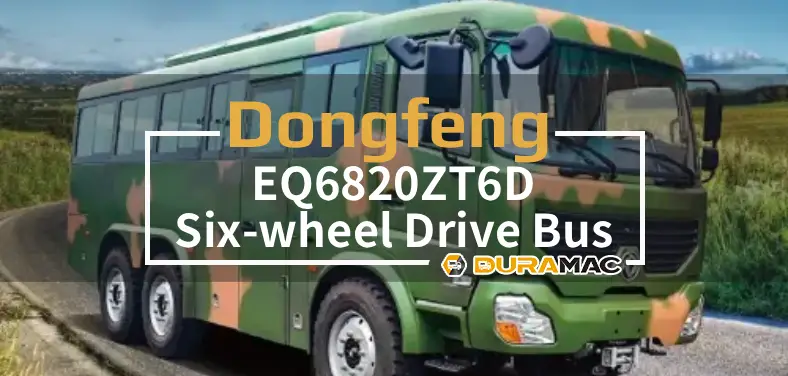

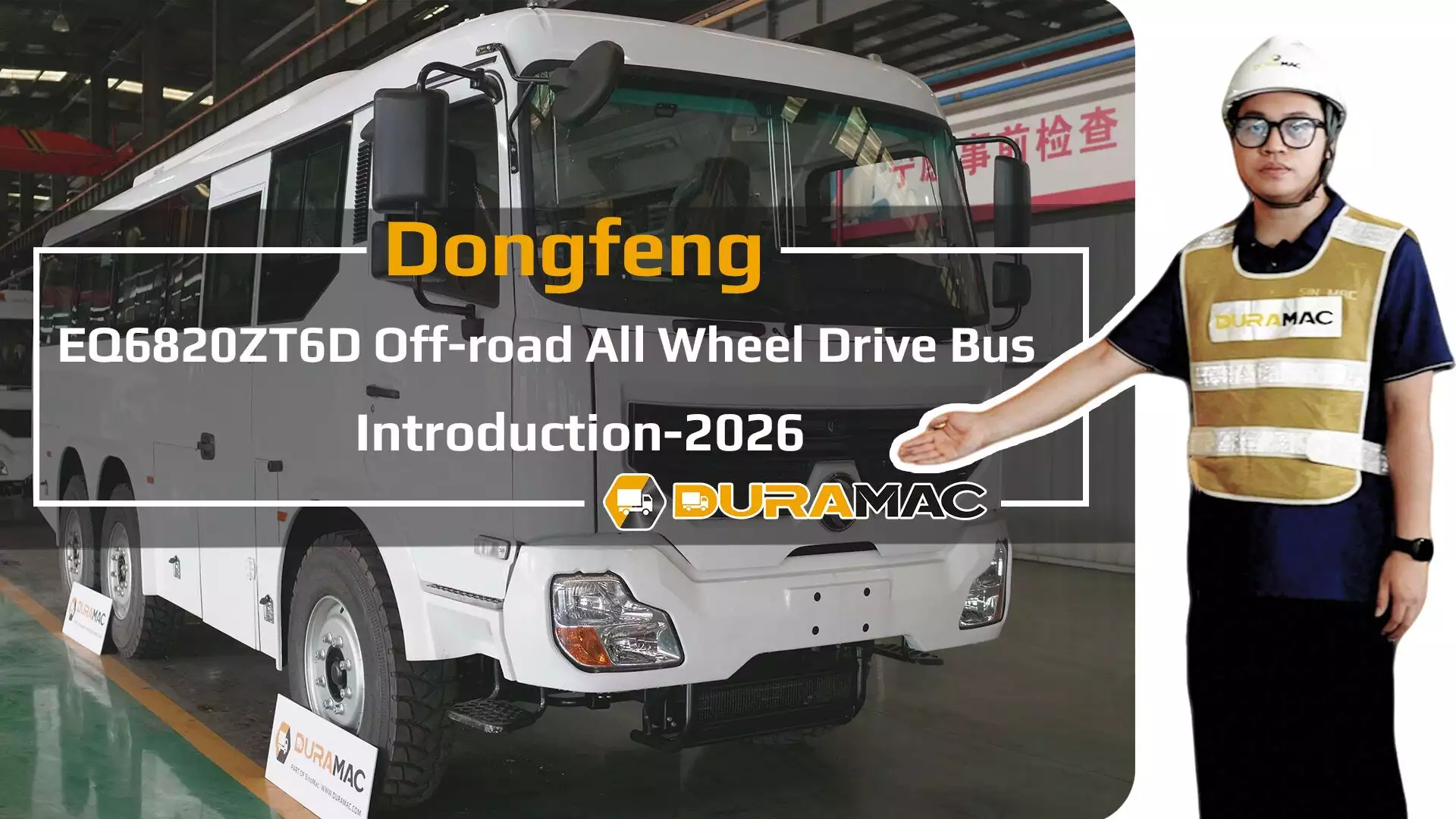

Dongfeng EQ6820ZT6D is a 6×6 National VI bus, 8200×2380mm in size, seating 24-31 passengers. It is powered by a Dongfeng Cummins D4.5NS6B220 engine, with a max speed of 100km/h and a minimum ground clearance of 300mm.

Adopting an electronically controlled part-time drive system, its front, middle and rear drive axles use Dongfeng military components. Developed on the Dongfeng Tianjin platform, it shares the platform’s original cab parts, with abundant after-market spare parts for easy after-sales service.

It comes with a cold-region adapted independent warm air water pump, steel-framed manual rearview system, MP5 with 17″/19″ color screens and faux leather adjustable seats. Optional 250L fuel tank; two bonded windshield designs; aluminum alloy side hatches and full vehicle painting included.

Advantages of EQ6820ZT6D Six-wheel Drive Bus

  • Adopts electrically controlled pneumatic 6×6 time-sharing drive system, realizing switching among front, middle and rear driving modes.

  • Equipped with Dongfeng military-grade front, middle and rear drive axles for high reliability and durability.

  • Developed on the mature Dongfeng Tianjin medium-duty truck platform, ensuring stable performance.

  • Benefits from complete after-sales service network for convenient maintenance.

  • Strong adaptability to harsh road conditions, suitable for forest transport, power emergency rescue, RV conversion and right-hand drive export.

Technical Specifications

Total Length (mm): 8200
Total Width (mm): 2380
Total Height (mm): 3050 (With Sunroof)
3250 (With Full-Top Air Conditioning)
Interior Height (mm) 1730
Wheelbase (mm): 3475+1250
Front Suspension / Rear Suspension (mm): 1475/2000
Approach/Departure Angle (°): 25/22
Step Height (mm): 530
Rated Maximum Gross Vehicle Weight (kg) 12000
Rated Number of Passengers (Persons) 24-31
Top Speed (km/h) 100
Minimum Ground Clearance (mm) 300 (6x6 Part-Time Drive)
Track (Front/Rear) (mm) 2050/2020/2020
coming soon
coming soon
coming soon

Model

Total Length(mm)

Overall Width(mm)

Total Height(mm)

Maximum Speed (km/h)

Maximum Total Mass(kg)

EQ6820ZT6D 8200 2380 3050 (With Sunroof)
3250 (With Full-Top Air Conditioning)
100 12000
EQ6820ZT3D 6800 2280 3250 (Full Roof Air Conditioner) 100 8150
DM-66B 7785 2240

3100

85 -
------END------

Basic information of Dongfeng EQ6820ZT6D motor

Engine Model D4.5NS6B220 Engine Manufacturer Dongfeng Cummins Engine Co., Ltd
Location/Fuel Type Front / Diesel Enginetype In-line 4-cylinder, 4-stroke, water-cooled, turbocharged with charge air cooling, electronically controlled single-point injection
Maximum power (kw) 162/2300 Maximum Torque (Nm/rpm) 820
Displacement (L): 4.5 L Emission Standard: China VI
——END——

Chassis Parameters And Configuration

Item Standard Configuration Optional configuration
Chassis Model EQ6790KZ6T, Dongfeng Special Vehicle Co., Ltd — —
Transmission Dongfeng DT0690 — —
Clutch 395 mm diaphragm spring clutch — —
Front Axle Dongfeng Dana, 3.3 tons — —
Mid-axle: Dongfeng Dana, 4.1 tons — —
Rear Axle Dongfeng Dana, 4.1 tons — —
Suspension Front 9 / Rear 12 (Rear Balancing Suspension) — —
Steering Power steering — —
Braking Air brake, ABS, self-adjusting arm, wear alarm, exhaust brake — —
Fuel Tank 250 L — —
Tires 315/80R22.5, 18PR — —
Battery/Generator 6-QW-120MF x 2 / 28V, 150A — —
others Copper radiator, engine pre-heater, electric urea heater, steering damper Oil line heating, centralized lubrication, power take-off, electric winch
------END------

Main body Assembly

Item Standard Configuration Optional configuration
Body structure Body-on-frame — —
Interior Formed soft interior — —
Doors and Door Pumps Driver and co-driver doors (power windows), manual swing passenger door Rear container-type double doors, rear inward/outward-opening double doors
Side Windows Fully bonded windows with middle windows (F green) Partial middle windows + partial fully bonded closed windows
Windshield Laminated front windshield, tempered rear windshield — —
Rearview System Steel-bracket asymmetric manual lever rearview mirrors — —
A/C System Full Roof-mounted A/C (Cooling Capacity: 20 kW) Full roof-mounted air conditioner / driver-area air conditioner
Heating System — — Standard Independent Water Heating - Heating Capacity: 15 kW,Heating system with independent heater, equipped with three radiators (three 170W box radiators or two 170W box radiators + one wall-mounted radiator)
High-Cold Area Independent Water Heating -Heating Capacity: 30 kW,Heating system with independent heater, equipped with three radiators (three 170W box radiators or two 170W box radiators + one wall-mounted radiator)
Simple Water Heating - Heating system without independent heater, equipped with three radiators (three 170W box radiators or two 170W box radiators + one wall-mounted radiator)
Independent Water Pump for Heating (High-Cold Areas)
Defroster Multi-speed defroster (24V, 280W) — —
Audio-visual System MP3 radio with USB port MP5 system with 17"/19" color display
Lamp Front and rear combination lamps — —
Wiper Parallel electric windshield wipers — —
Compartments Steel plate luggage compartment doors Aluminum alloy luggage compartment doors
Seats 31 seats, shock-absorbing driver seat, fabric regular passenger seats, armrests standard on aisle-side seats Mid-range seats (white + black faux leather, adjustable backrest, upward-folding armrests)
Paint Domestic solid paint Metallic paint
Others Speckled vinyl floor, fire extinguishers (4 kg, 2 pcs), safety hammers (5 pcs), electronic clock, DC816A horizontal regular sunroof, front windshield sun visor (regular vehicle), dual half-width roller sunshades for driver and co-driver (air-conditioned vehicle), air horn, seat belts for all seats, seat belt warning system, mechanical battery disconnect switch, GPS driving recorder, retractable step for passenger door, T-BOX, engine compartment, battery compartment, manual/automatic fire suppression system for the optional independent heater compartment Folding curtains for side windows and rear window, roller pull-down curtains (rear container-type doors), driver-area fan (regular vehicle only), 2.5 mm aluminum checkered floor, 1.2 mm aluminum checkered floor, DC816B horizontal ventilation skylight, external luggage rack, reverse monitoring system, warning lights and siren (other special requirements subject to order agreement)
------END------

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
